Principle

• Achieves effective discharge

• Improves the flow characteristics of powders with poor fluidity
• Powder can be discharged by a combination of vibration and air flow
• It is indispensable for the discharge of raw materials that are easy to bridge
  Suitable for applications such as metered feeding, dust collectors, stock bins, buffer hoppers, storage tanks, etc.

Features

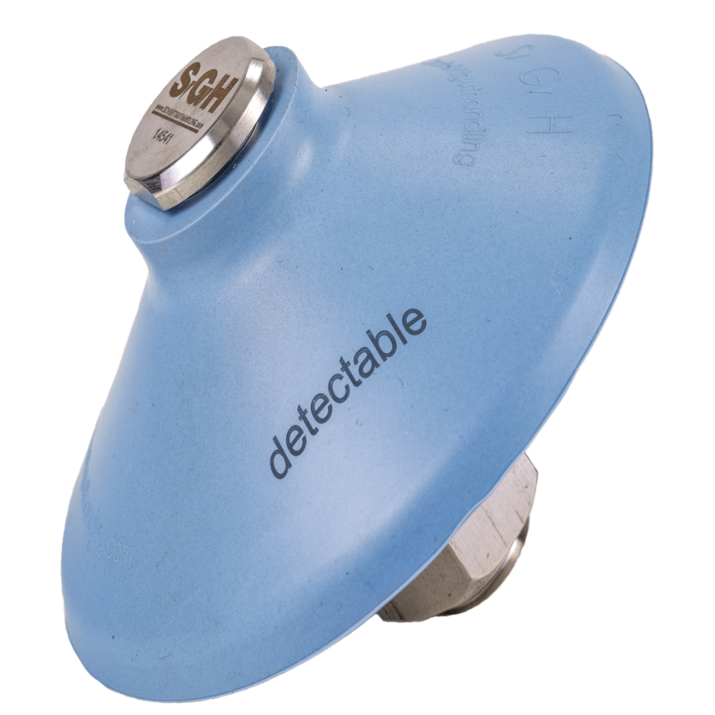

• The air flow is intermittently ejected from the vibrating pad made of special materials, causing the raw material to flow and transmitting resonance waves to the inside of the raw materials. The compressed and ejected air not only separates the raw materials from the inner wall of the container, but also causes the raw materials to flow.
• Because there is a special double-lip silicone rubber (also available in neoprene) pad, no raw material of any kind can enter the compressed air piping.
• The streamlined vibrating pad will not hinder the flow of raw materials inside the container.

Purpose

Model and parameters

• The main bolt is made of carbon steel and SUS304 (it can also be made of SUS316).
• The pad is made of white silicone rubber and neoprene, and can be used in a temperature range from 180°C to a maximum of 250°C.

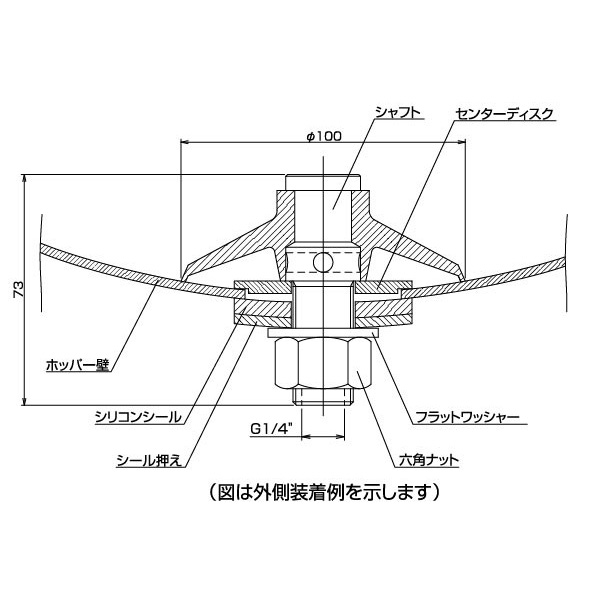

• It can be easily installed according to the installation instructions.
• Proper discharge is achieved in combination with a timing controller.
• The necessary compressed air pressure ranges from minimum 50Kpa to 60Kpa.

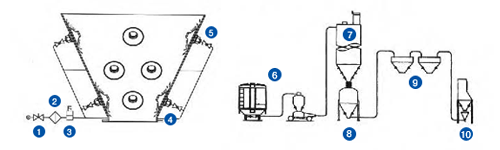

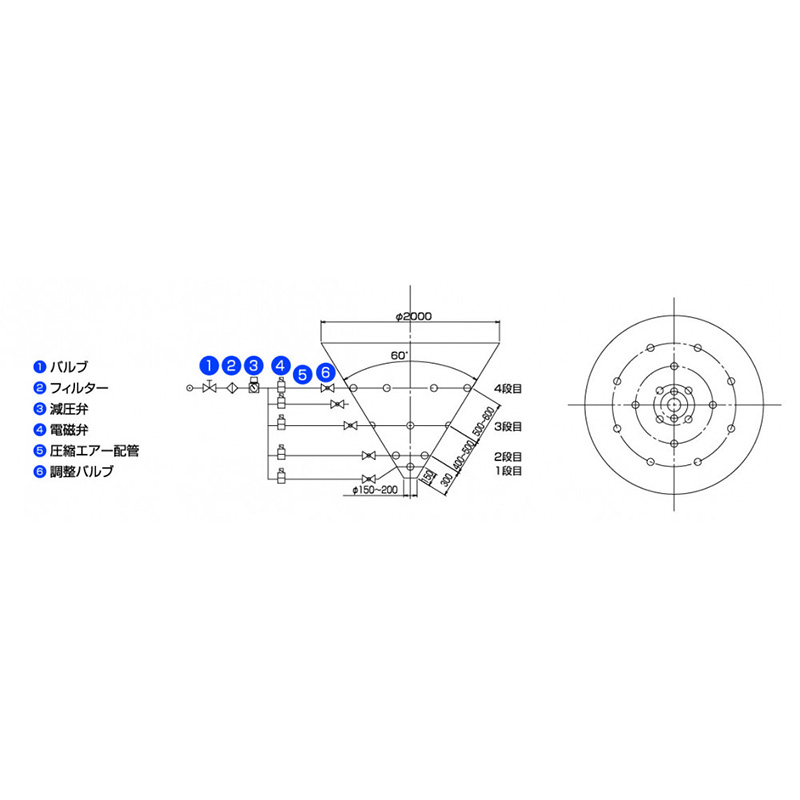

Installation (case)

• Valves
• Filter
• Solenoid valve
• Compressed air piping
• Regulating valve
• Railway wagons, trucks, etc.
• Storage tanks, stock bins, hoppers
• Conveying container
• Hopper
• Dust collector and its discharge station
