Features

• Can be used for metered filling of various bags.
  Suitable for plastic bags, paper bags, paper bags + plastic inner bags, aluminum foil bags, and various flexible bags.

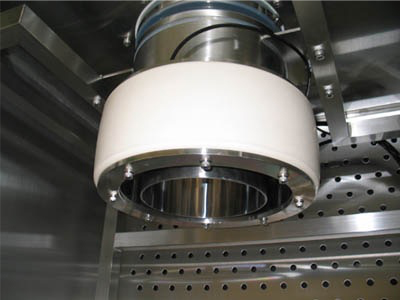

• The annular silicone tube is inflated by compressed air to form a tight seal on various types of bags from the inside out, hence achieving an ideal fixed state.
• The raw material feeding pipe has a double structure, and the air adjustment function of the dust collector reduces product loss and no dust is generated to the outside world..

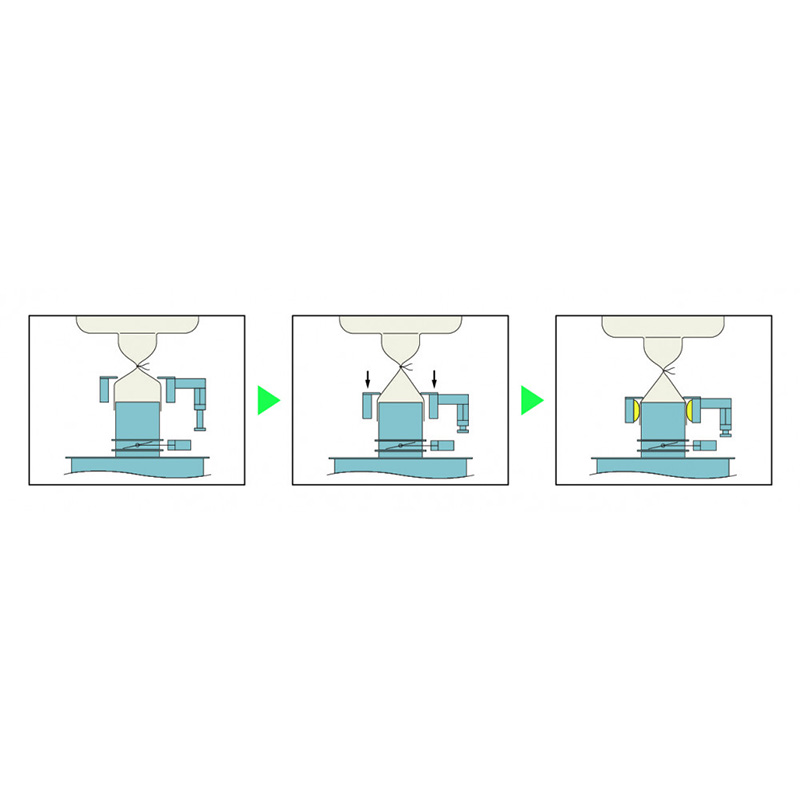

〈During contraction〉

〈After expansion〉

Purpose

• Please use it to improve the working environment of bagging and filling machines, flexible bag filling machines, mixer discharge ports, hopper discharge ports, etc.

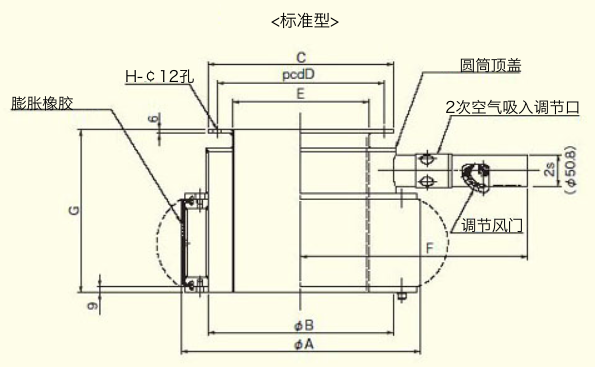

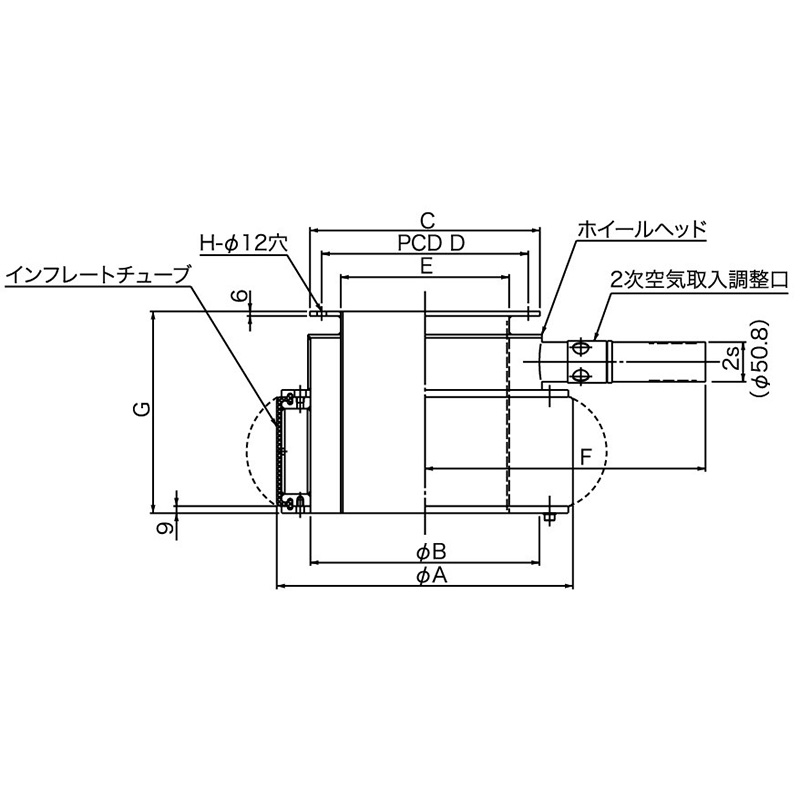

Model and parameters

Flow chart

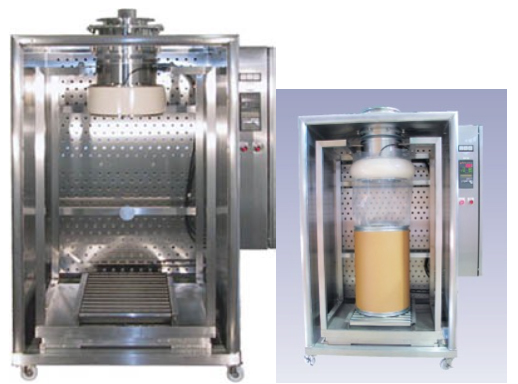

Metering and filling device

• It is a device that fixes various bags through the expansion of the inflatable silicone tube to perform the metered filling of powder and granular materials in a clean working environment.

During metered filling

Features

Specification

• Since air has little impact on metering, it can be matched with various feeders and dampers to ensure high metering accuracy.
• The metering and filling device is surrounded by partitions to form a flow of air. Even if dust occurs, it will not be blown to the operator. It is a very safe device.
• The standard practice is to install an air hammer at the dust cover and the short feeding pipe respectively to minimize dust scattering when changing bags.
• It is easy to disassemble and clean due to simple structure and high cleanability.

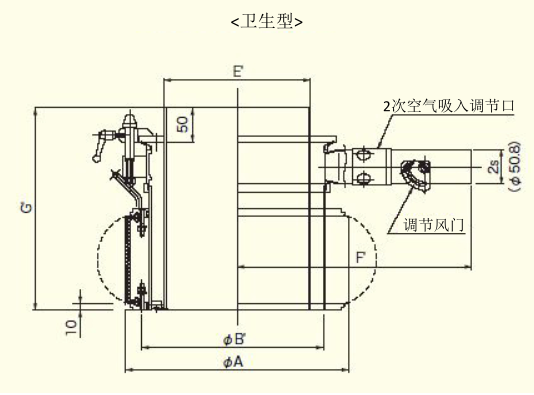

Sanitary type
